I Promise You’ll Like This Pneumatic Soft Dot Display

Summary: Creator soiboi soft has developed an 8x8 Air Powered Dot Display that leverages soft robotics, pneumatics, and fluidic logic. By utilizing vacuum suction, bistable mechanical latching, and row-column fluidic multiplexing, the system generates physical "pixels" capable of delivering both visual content and tactile feedback.

Key Takeaways

  • Pneumatic Tactile Pixels: The display utilizes vacuum suction and atmospheric pressure to deform a flexible membrane into debossed concave dots, offering both visual and tactile interfaces suitable for braille.
  • Fluidic Logic Multiplexing: Integrated microfluidic T-channels function similarly to electronic transistors, allowing an 8x8 grid (64 pixels) to be controlled with just 16 solenoid valves.
  • Bistable Mechanical Memory: Each physical pixel latches into either an "up" or "down" state using elastic tension and orifice seals, preserving display states without needing continuous power to every point.

Detailed Overview

Modern display technologies like LCDs, OLEDs, and E Ink screens excel at high-resolution visual fidelity. However, when interface designs prioritize tactile interaction or physical feedback over simple pixel density, traditional screens fall short.

Maker soiboi soft has addressed this by creating the Air Powered Dot Display, a pneumatic-driven screen that introduces tactile physical pixels.

Air Powered Dot Display Overview

Building upon an earlier proof-of-concept—a soft seven-segment display—this newer project expands the idea into a versatile 8x8 matrix of physical dots. These dots move physically to create debossed shapes on a flexible surface, generating patterns that can be both seen and felt.

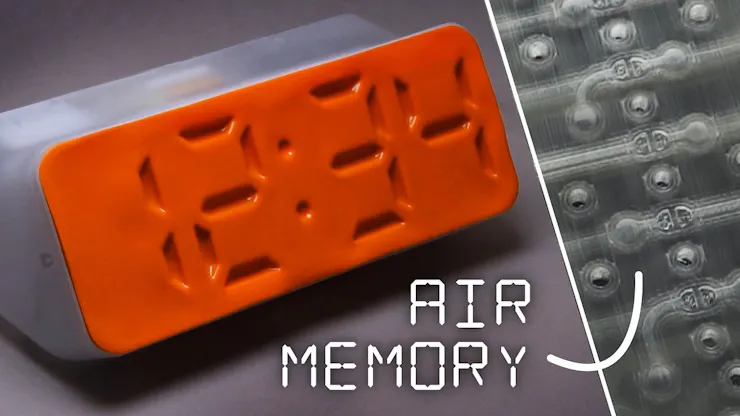

Air Powered Seven-Segment Display Prototype

Deep Dive & Technical Insights

Pneumatic Pixel Mechanics

Underneath the display's flexible upper membrane lies a series of hollow cavities. When air inside a specific cavity is evacuated using a vacuum source, external atmospheric pressure forces the membrane down into the cavity. This action creates a smooth, concave dome shape that acts as an active tactile pixel.

Matrix Cavities and Flexible Membrane

Vacuum and Pressure Differential Mechanism

Latching Fluidic Multiplexing

Directly driving an 8x8 matrix of 64 individual dots would typically require 64 discrete electronic solenoid valves, which is bulky and inefficient. To solve this, soiboi soft implemented fluidic multiplexing with internal memory channels:

  1. Fluidic Transistors: 3D-printed air channels running underneath the membrane form T-shaped junctions. Airflow within these junctions acts similarly to electronic transistors, toggling air paths dynamically.
  2. Bistable Latching: Each dot features two stable physical states:
    • Up Position: Maintained by the natural elasticity of the flexible membrane.
    • Down Position: Maintained when the depressed membrane seals against the air channel orifice, allowing atmospheric pressure to lock it in place.

3D Printed Microfluidic Air Channels

Fluidic Multiplexing Diagram

Because the fluidic channels provide mechanical state memory, drawing images on the display only requires activating matrix rows and columns sequentially, reducing control requirements down to just 16 valves (8 row valves + 8 column valves).

System Hardware Stack

The physical assembly combines custom 3D-printed fluidic manifolds with accessible off-the-shelf electronics:

  • Pneumatics: Low-power vacuum pump and 16 miniature solenoid valves.
  • Control Hardware: Two Adafruit 8-channel solenoid driver boards paired with an ESP32-based development board.
  • Fabrication: 3D-printed fluidic channel layers bonded to a flexible elastomer membrane interface.

Complete Assembly and Driver Setup

Demonstrating Active Display Output

Interactive Capabilities

Beyond displaying static tactile shapes and rendering braille, the system's fluidic logic operates quickly enough to refresh dynamic content. The display can run simple interactive games, such as Pong and Snake.

Conclusion & Resources

The Air Powered Dot Display demonstrates how fluidic computation and soft robotics can transform human-computer interfaces. By replacing complex electronics with pneumatic logic and mechanical memory, tactile displays become significantly more practical to produce.
